Ram Pump Filter Buckets
Ram Pump Filter Buckets
Couldn't load pickup availability
The Hydraulic Ram Pump Filter Bucket is designed to bring water in from the lid and exit water out from the mid point of the bucket. The Filter goes inline with the drive pipe of a Hydraulic Ram Pump to reduce silt from entering the pump but also to act as an air free water source for the pump. The Ram Pump will stop if an air bubble gets trapped in the drive pipe.
Match the Filter Bucket Size to the Ram Pump size for best results.
Ram Pump Install with Filter Bucket:
This Silt and Air Filter bucket For Ram Pumps does two things.
- It allows space for silt and debris to accumulate on the bottom of the bucket. This helps keep particles out of the ram pump and out of your storage tank. If rocks and sand build up in the ram pump it can stop the pump from cycling. This bucket allows you to capture the debris and dump it out periodically as it fills up.
- The top portion of the bucket allows space for air bubbles from the intake to float up and away from the drive pipe. If air bubbles get into the drive pipe it can stop the ram pump from cycling. It can be a challenge to capture water from a small creek and keep air from getting into the drive pipe. The bucket gives you the option to have air get into the supply line and defuse out of the water before traveling down the drive pipe.
Operation
How it works. Water Enters into the top of the bucket depositing silt on the bottom and letting air bubble float up to the lid and out the vent holes. Air free water then exits out the middle of the bucket through the drive pipe. The drive pipe goes down to the Land To House Ram Pump so you can pump water uphill without fuel or electricity, only flowing and falling water.
When do I need a Silt Filter Bucket?
- Low flow creeks that might limit capturing water without air bubbles
- Creeks with lots of fine sand or silt that might pass a window screen intake filter
- Too much input head pressure that needs to be limited down. (The bucket becomes the new water source head pressure)
The Silt Filter and Air diffuser bucket is not right for every install. If your water supply is deep you might not need a silt filter bucket. Adding the bucket can greatly improve your Ram Pump install by providing a water source that does not have air but if your source is deep the bucket might float away. Also, if you have limited head pressure to work with, the bucket filter can reduce that head pressure further.
What comes in the box?

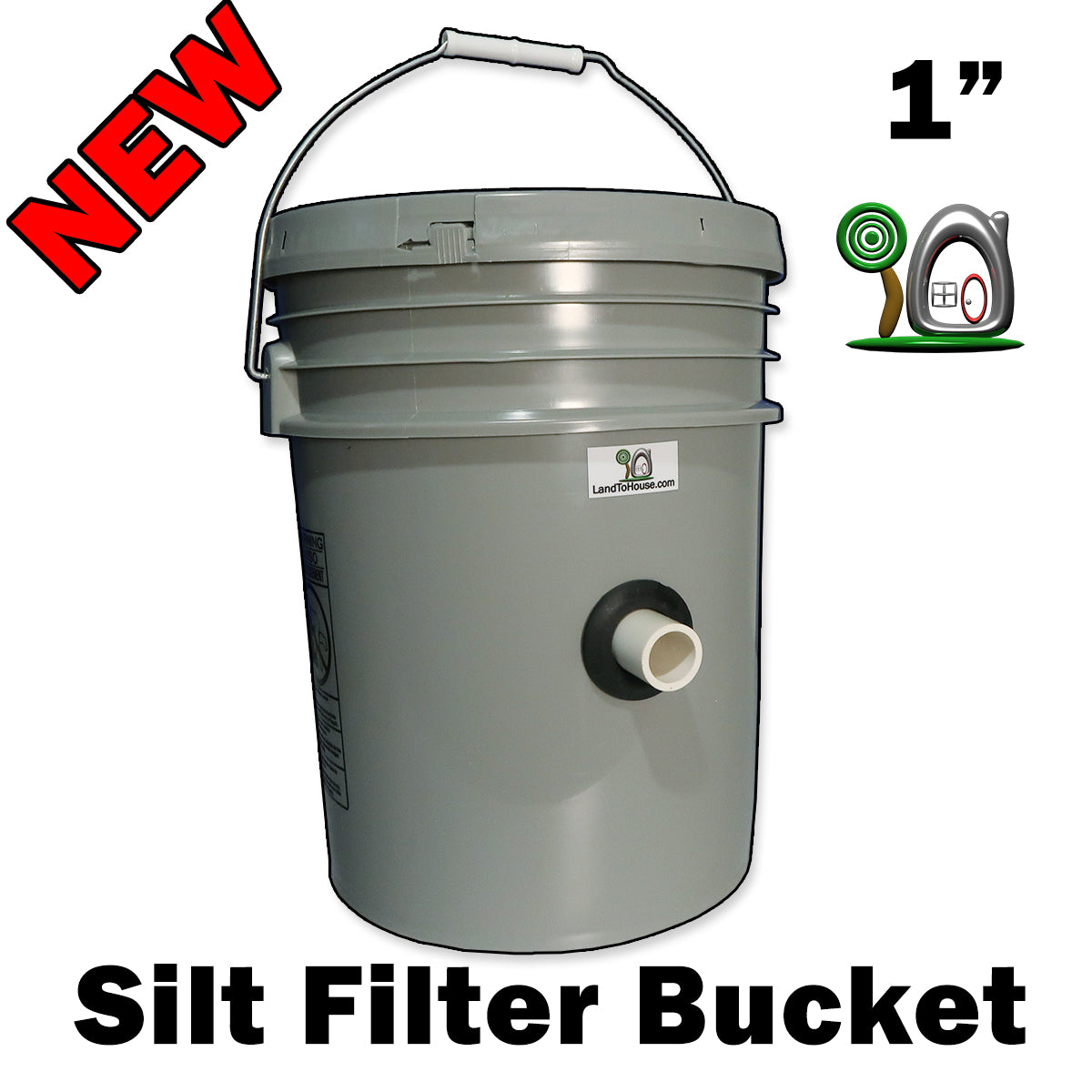

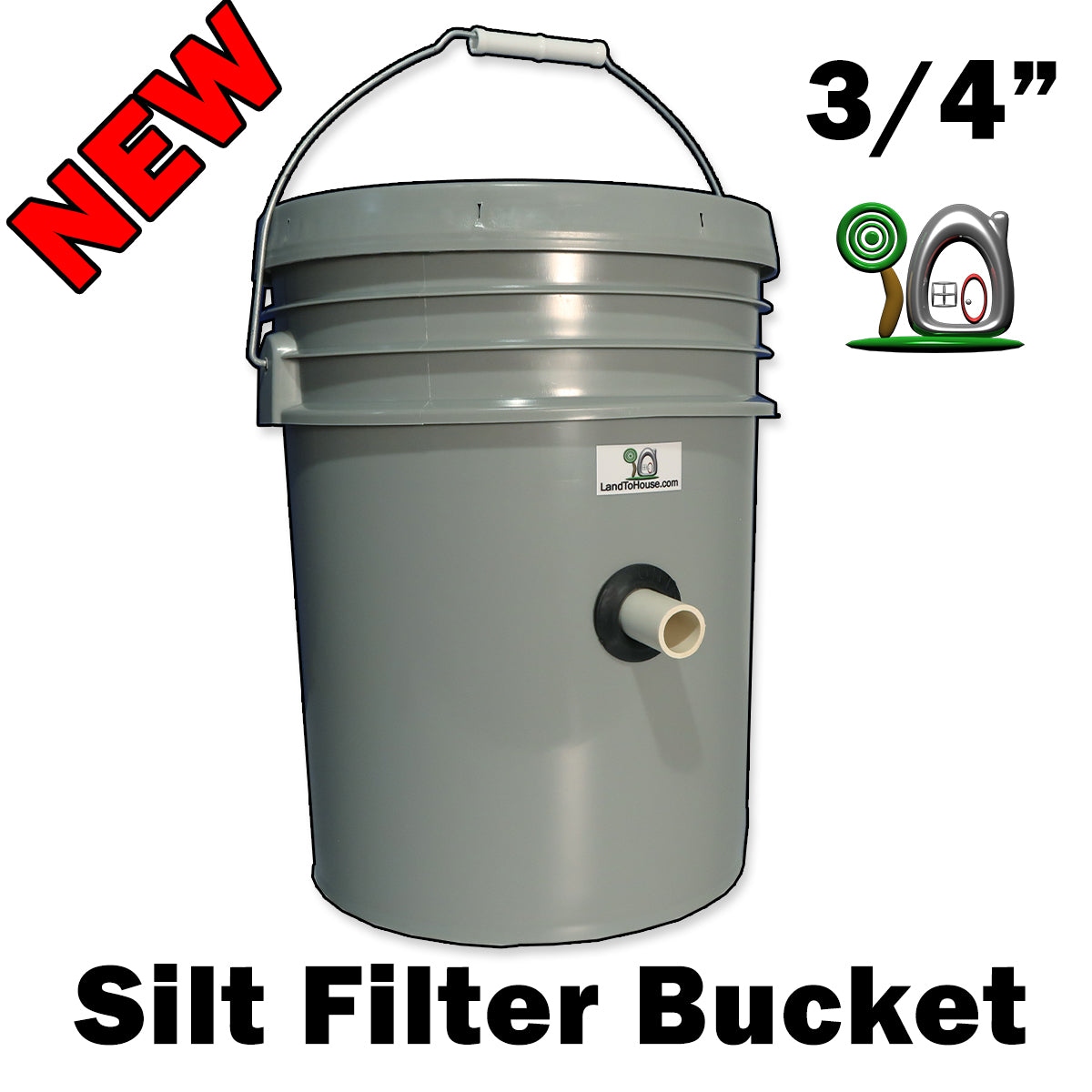

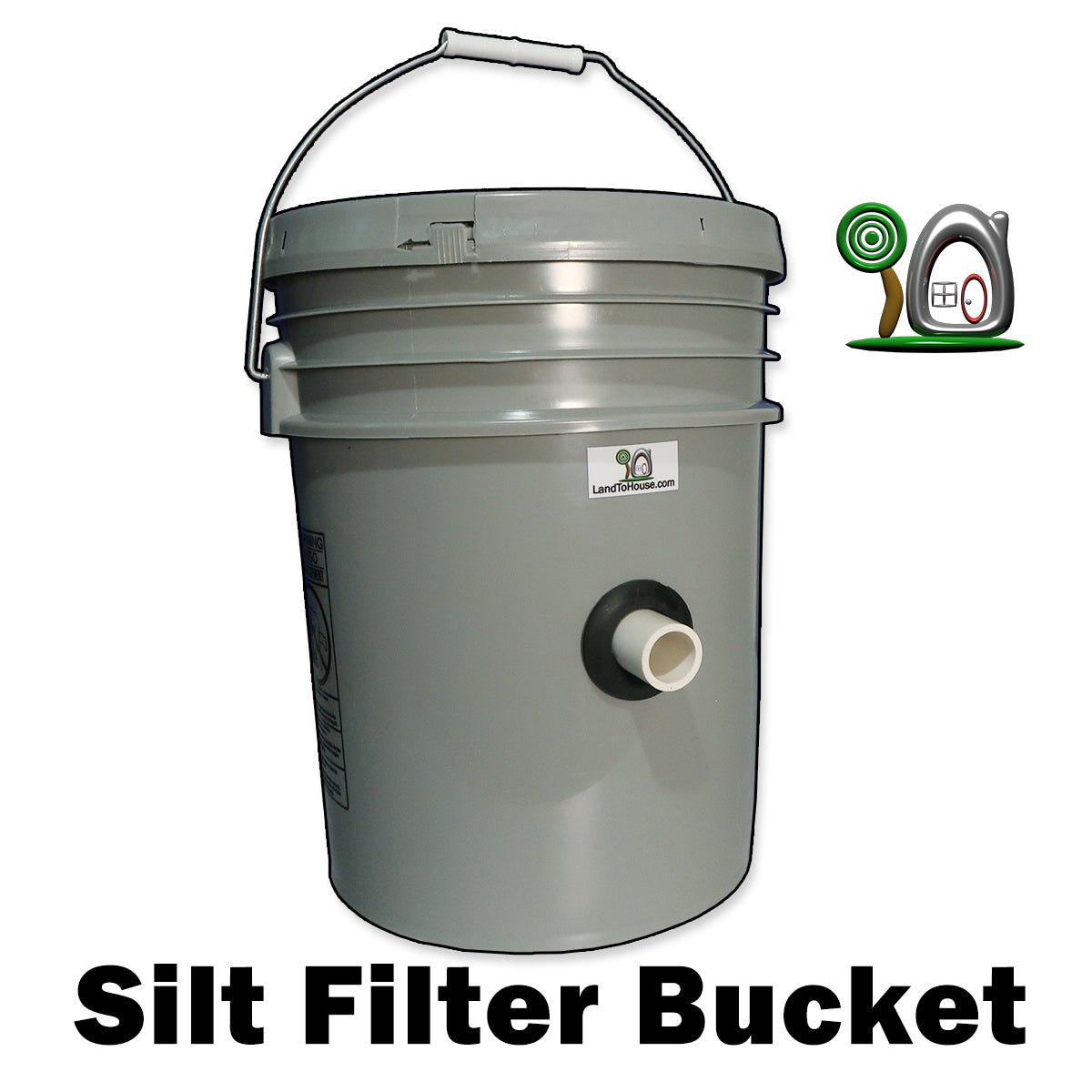

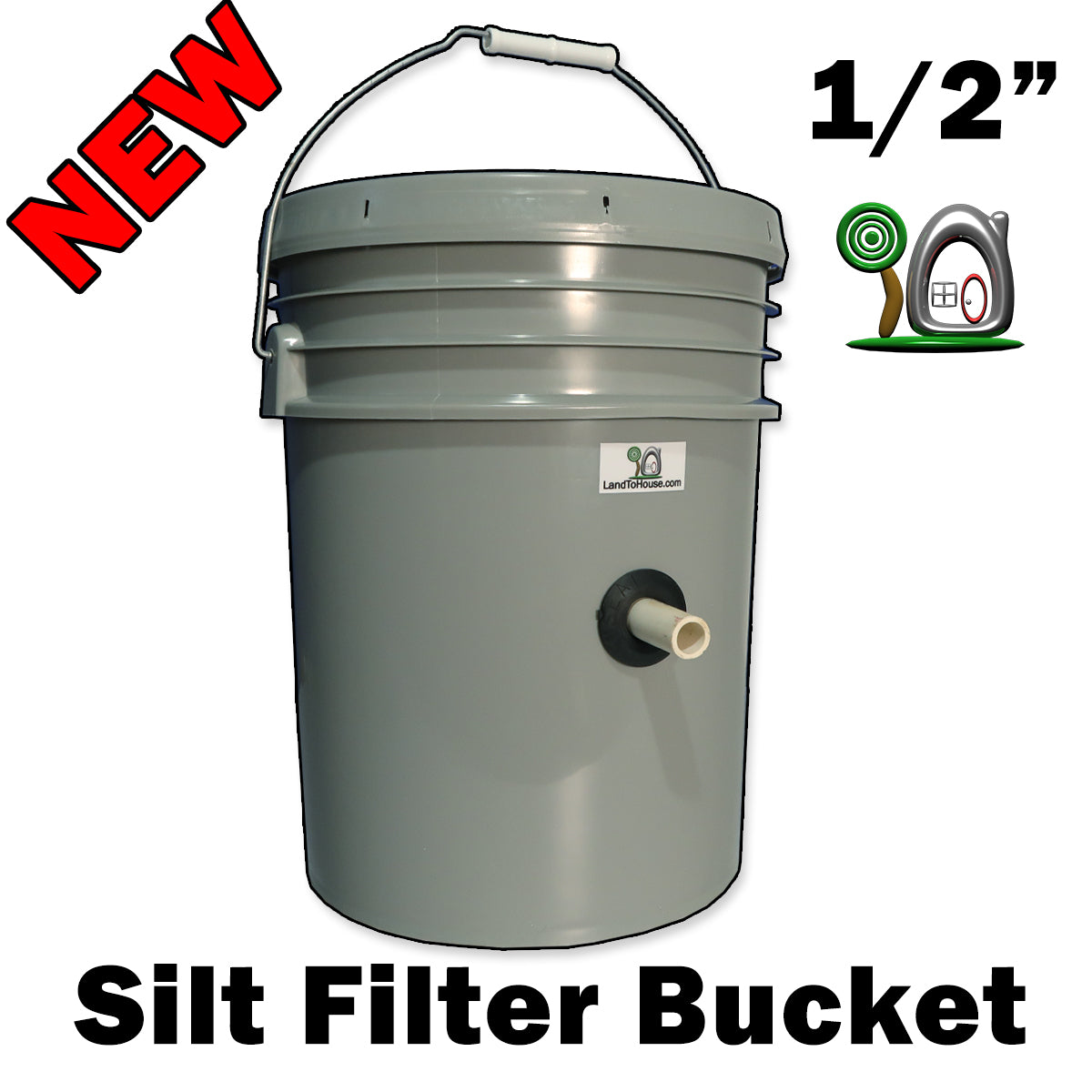

The Bucket filter has a Lid with Rubber grommet holding a pvc pipe sized for your supply line. This grommet keeps the pipe in place with an air tight seal. The bucket itself is 5 gallons and also has a rubber grommet midway up the bucket. The pipe coming out will be connected to the drive pipe feeding your ram pump.
